Technology


24GHz and 61GHz solutions

Reliable solutions based on radar technology for industrial applications

gantry crane

Severe conditions such as coal dust, snow, rain, fog, vibrations, temperature changes etc. do not affect the accuracy of the system operation.

The use of 24GHz and UWB 61 GHz radar technology allows for the implementation of a wide range of applications with centimeter accuracy from short to long measuring ranges (up to 1000m).

No maintenance required generates large savings during operation.

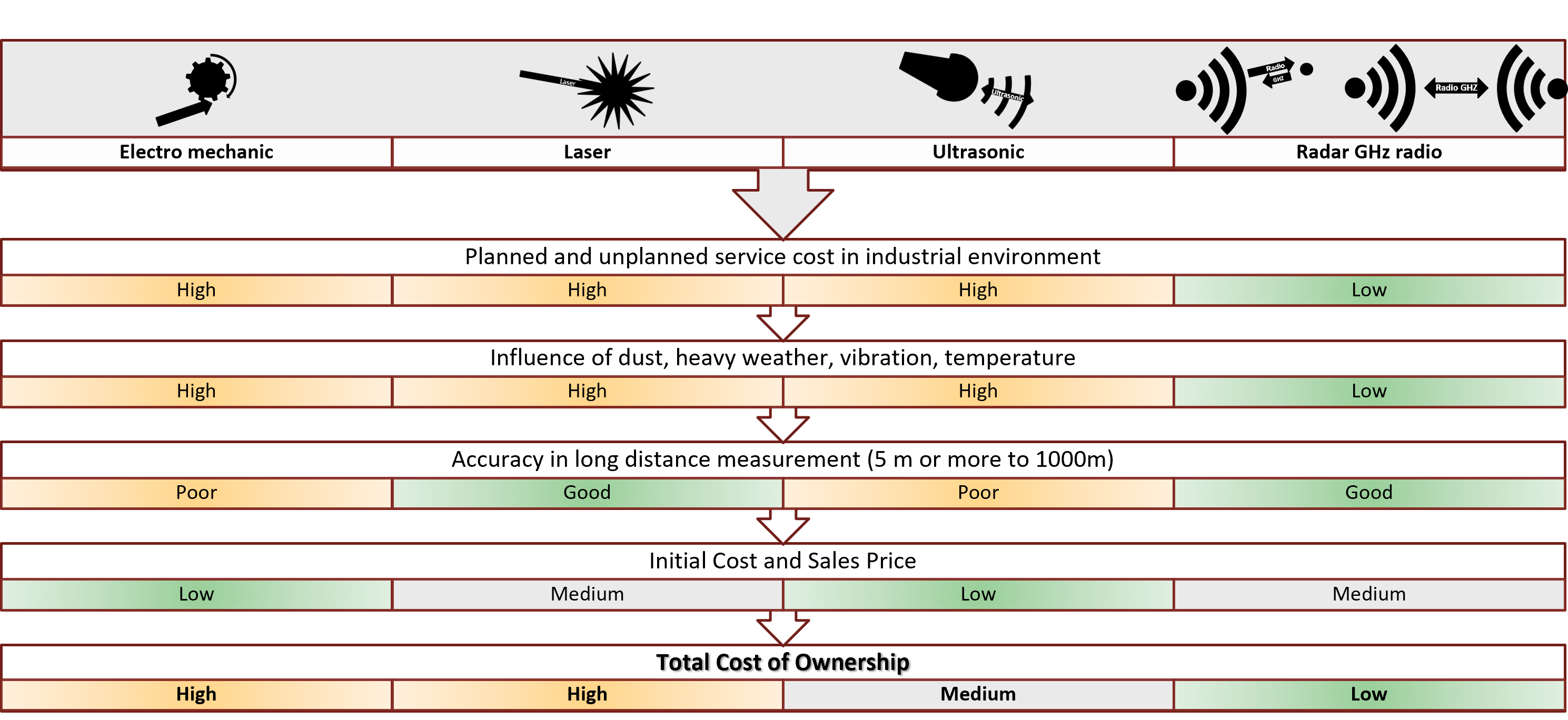

Technologies Comparison

Basic industrial distance measurement systems (1D)

technologies comparison

Total cost of ownership radar systems is lower than other 1D measuring devices.

The initial cost of the radar technology is seemingly high, but the savings in operation and maintenances well as the lack of influence the external conditions on the measurement quality compensate the higher purchase costs.


Radar modes

How to works Primary radar

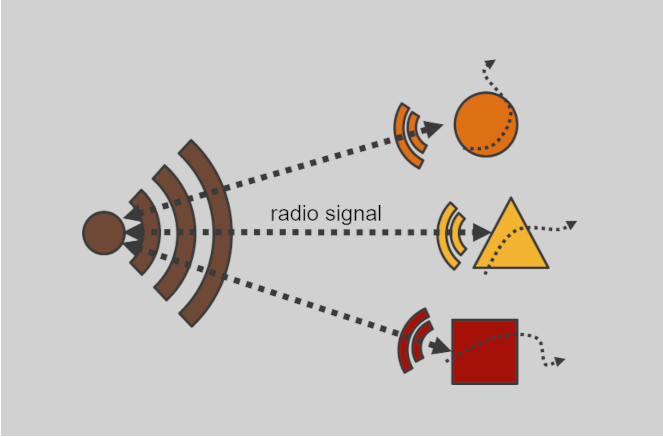

3D Primary mode

Measurement:

  • Target position
  • Speed
  • Shape
  • Volume
How works radar Primary

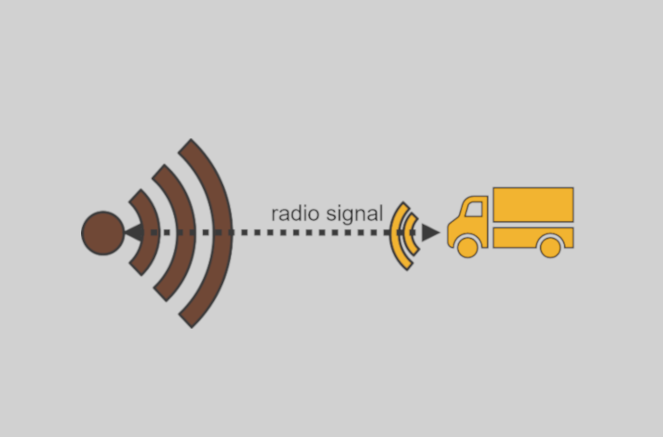

1D Primary mode

Measurement:

  • Distance
  • Speed
  • Presence
How to works Secondary Radar

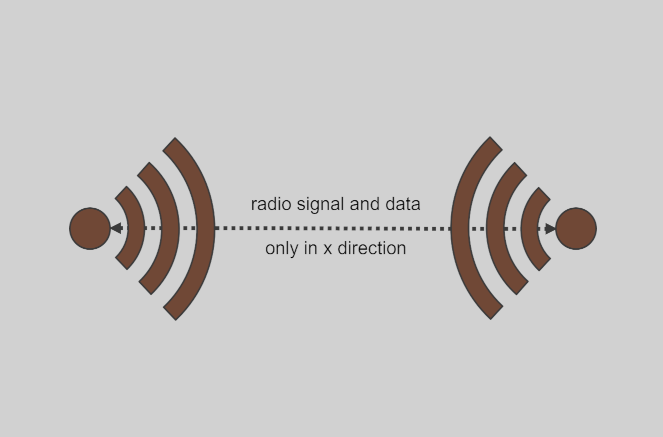

1D Secondary mode

Measurement:

  • Distance
  • Speed
  • User data transmission possible

Error evaluation for 1D distance measurement for various technologies

Spatial distribution of errors

Radar 1D - Spatial distribution of errors

Spatial distribution always within the same limits - independent of external factors

Encoder - Cumulative distance error

Encoder - Cumulative distance error

Cumulative error that varies periodically - e.g., with changes in the ambient temperature of the tested objects
